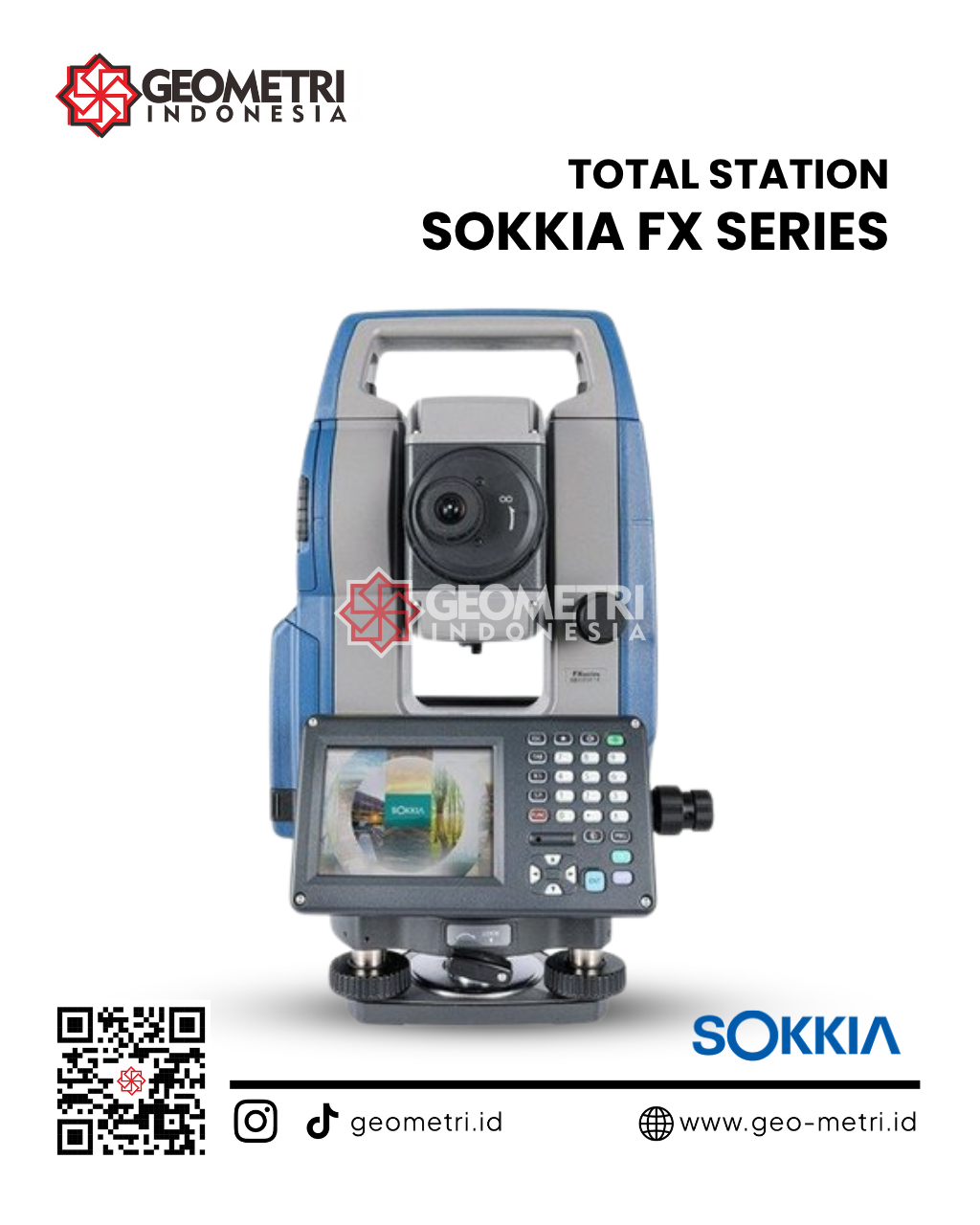

Total Station Sokkia FX Series
Total Station Sokkia FX Series
- Total Station Sokkia FX-101
- Total Station Sokkia FX-102
- Total Station Sokkia FX-103
- Total Station Sokkia FX-105
Komplit Standar :
- 1 Battery
- 1 Charger
- 1 Hardcase
Aksesoris :
- 2 Tripod
- 1 Pole Stick
- 1 Prisma Polygon
- 1 Prisma Singgle
Note:
*Harga Dapat Berubah Sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
*Mohon tanya ketersediaan barang terlebih dahulu.
*Barang selalu kami cek terlebih dahulu sebelum di kirim
Description
| General | ||
| Laser-pointer*12 | Coaxial red laser using EDM beam | |
| Guide light*12 | Green LED (524nm) and Red LED (626nm), Operating range: 1.3 to 150m (4.3 to 490ft.)*2 | |
| Levels | Graphic | 6’ (Inner Circle) |
| Circular level | 10’ / 2mm | |
| Optical plummet | Magnification: 3x, Minimum focus: 0.3m (11.8in.) from tribrach bottom | |
| Laser plummet (optional) | Red laser diode (635nm±10nm), Beam accuracy: ≤1.0mm@1.3m, Class 2 laser product | |
| Dust and water protection | IP65 (IEC 60529:2001) | |
| Operating temperature*13 | -4 to +122ºF (-20 to +50ºC) | |
| Size with handle*9 | Control panel on both faces: W7.5 x D7.5 x H13.7in. (W191 x D190 x H348mm)
Control panel on one face: W7.5 x D6.9 x H13.7in. (W191 x D174 x H348mm) |
|
| Weight with battery & tribrach | Approx. 12.6 lb. (5.7kg) | |
Selengkapnya : Download Datasheet
